DXS-PWR300DCProject

300 W DC Power Supply with a Fan for the DXS-3400 and DXS-3600 Switches

Description


DXS-PWR300DC is a 300 W DC Power Supply with a fan (front-to-back air flow) for the DXS-3400 and DXS-3600 Switches.


General features


Output Power
• 300 W

Input Voltage Range
• From -40 to -72 VDC

Max. Input Current
• 9 A @ -40 VDC

Max. Inrush Current
• 50 A

Efficiency
• 87%

Physical Parameters
Dimensions (L x W x H)
• 27.5 х 7.9 х 4 cm

Weight
• 1.01 kg

MTBF
• 134 699 hours

Temperature
• Operating: -5 to 50 °C
• Storage: -40 to 70 °C

Humidity
• Operating: 0 to 95% non-condensing
• Storage: 0 to 95% non-condensing

Certificates

Order info


DXS-PWR300DC  300 W DC Power Supply with a Fan for the DXS-3400 and DXS-3600 Switches


Pictures

DXS-PWR300DC/A

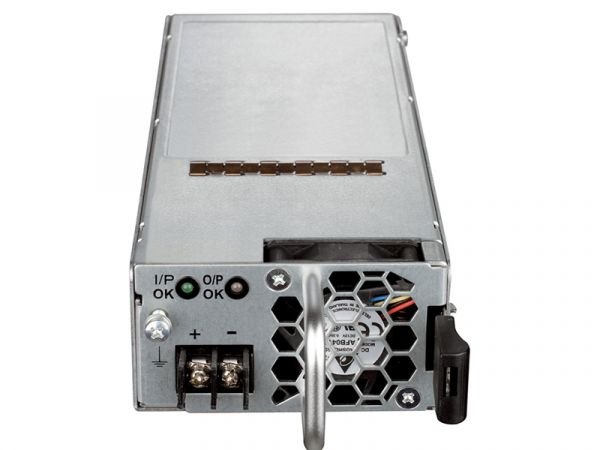

Front view
