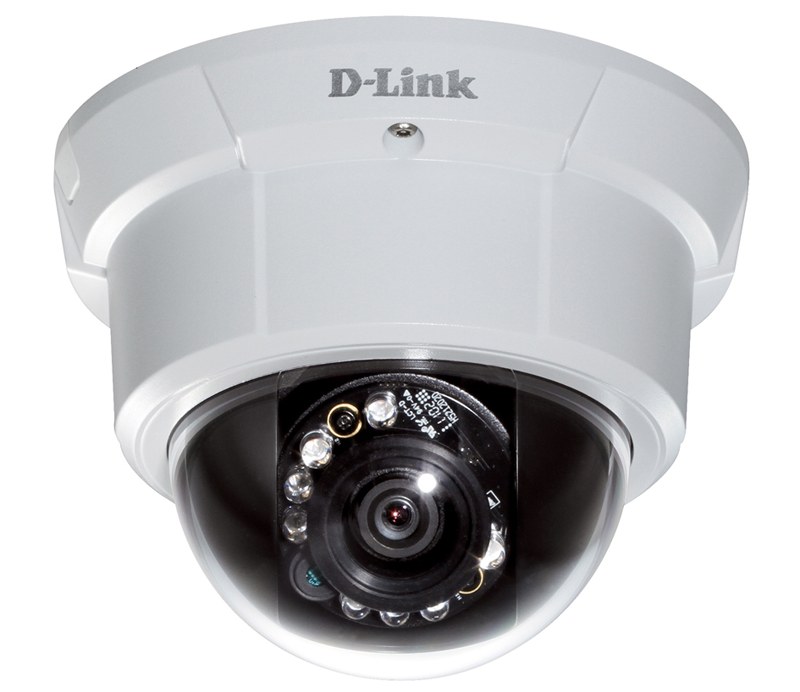

D-Link’s DCS-6113V Full HD Day & Night Dome Network Camera is an indoor fixed dome camera equipped with
industry-leading high definition (Full HD) megapixel resolution and H.264 compression that enable high-quality
video footage to be recorded. The DCS-6113V connects to a network to provide high-quality live video over the
Internet. This camera is capable of capturing video in both dark and light environments thanks to its built-in IR
LEDs and IR-cut removable (ICR) filter. The bundled 32-channel recording software simplifies the process of managing multiple IP cameras. The camera also has a built-in MicroSD card slot which can be used as a local backup by storing important events on an easily retrievable MicroSD card.

Full HD Surveillance
The DCS-6113V delivers Full HD 16:9 widescreen IP video surveillance which provides vivid high-quality video, making it easier to view and monitor footage.

Multiple Video Streams
The DCS-6113V supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-6113V supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Day and Night Functionality
The camera can be used during both day and night. The ICR filter allows the camera to capture crisp color images during the daytime and detailed grayscale at night, in low-night conditions, and even in complete darkness.

Vandal and Tamper-proof
Vandal-proof and anti-tamper features make the DCS-6113V camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The robust camera housing is IK-10-certified, allowing it to withstand a high amount of force. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

Flexible Connectivity
The DCS-6113V includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-6113V also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

3GPP Mobile Surveillance
Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.

D-ViewCam for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Viewing Window and ePTZ
Customize your Region of Interest (ROI) by simply drawing a rectangle on the full view display in the web interface. Being able to digitally move the ROI is an advantage for a fixed camera since it can utilize the virtual auto pan along with preset point settings to display vivid details from HD video footage. The viewing window also allows you to utilize zoom to obtain more-indepth footage.
